RS Series
-

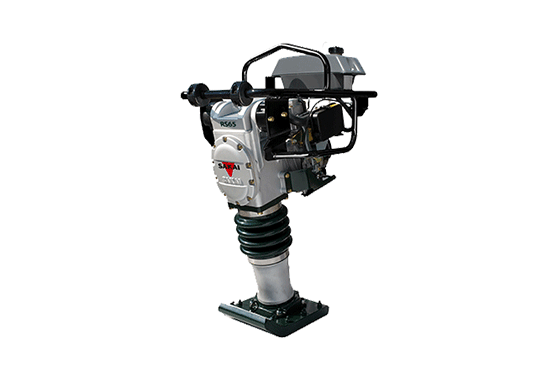

RS65
Feature
High efficiency
- Compaction stroke is increased by 30% from earlier models.
- Tapered front corner shoe are standard equipment for protection of the side edge of pavement.
Safety provisions
- Sakai's original large size rubber isolators assures easy control and comfortable operation.
Easy maintenance
- Multi air cleaner system promises long interval of engine maintenance.
Specification
*Specifications are subject to change without notice.
| MODEL | RS45 | RS55 | RS65 | RS75 | |
|---|---|---|---|---|---|
| WEIGHTS | kg (lbs) | 53 (117) |
58 (128) |
70 (154) |
76 (168) |
| DIMENSIONS | |||||
| Overall length | mm (in) | 675 (26.5) |
740 (29) |
||
| Overall width | mm (in) | 375 (15) |
395 (16) |
||
| Overall height | mm (in) | 1,015 (40) |
1,040 (41) |
||
| Ramming shoe | mm (in) | 230×340 (9×13.5) |
260×340 (10×13.5) |
280×340 (11×13.5) |
|
| ENGINE | |||||
| Make | HONDA | ||||
| Model | GX100 | GXR120 | |||
| Type | Gasoline, Air cooled, 4 cycle | ||||
