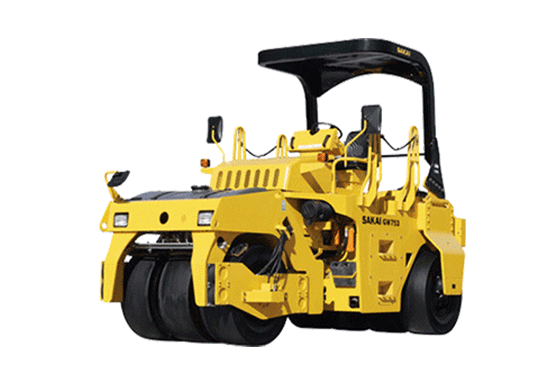

GW753 with ROPS
-
GW753 with ROPS
Feature
Improves compaction quality and efficiency
- Dynamic kneading and vibratory action
- Density result equal or higher than 25 ton static tire roller.
- Four amplitude settings to achieve the required density
- Versatility on both large and small projects for tight and dense longitudinal joints, hot mix asphalt （HMA）, aggregate base, roller compacted concrete and warm-and cold-mix, etc.
- Maneuverable in tight spaces on city streets, parking lots and cul-de-sacs by center-pin articulated steering
Safety
- Upgraded to 180°rotating swivel seat
- Additional 1 step to operator seat（3 steps in total）
- Emergency brake pedal
Cost saving
- Trucking cost Approximately 40% lower compared to 25 ton static tired roller
Specification
| MODEL | GW753 with AWNING | GW753 with ROPS | |
|---|---|---|---|
| WEIGHTS | |||
| Max. operating weight | kg (lb) | 8,915 (19,655) |
9,160 (20,195) |
| Operating weight | kg (lb) | 8,495 (18,730) |
8,740 (19,270) |
| Load on front axle | kg (lb) | 3,585 (7,905) |
3,640 (8,025) |
| Load on rear axle | kg (lb) | 4,910 (10,825) |
5,100 (11,245) |
| DIMENSIONS | |||
| Overall length(L) | mm (in) | 4,695 (185) |
|
| Overall width(W) | mm (in) | 2,200 (87) |
|
| Overall height(H) | mm (in) | Unfold 3,150 (124) / Fold 2,650 (104) |
3,225 (127) |
| Wheelbase(L1) | mm (in) | 3,150 (124) |
|
| ENGINE | |||
| Make | KUBOTA | ||
| Model | V3800DICR-TIE3B-SH1 | ||
| Type | Diesel, Water-cooled, 4-cycle, 4 cylinder, with turbo charger |
||
| VIBRATING SYSTEM | |||
| Drive | Hydraulic | ||
| Vibrator type | Variable Eccentric shaft | ||
