TW504 / 354
-

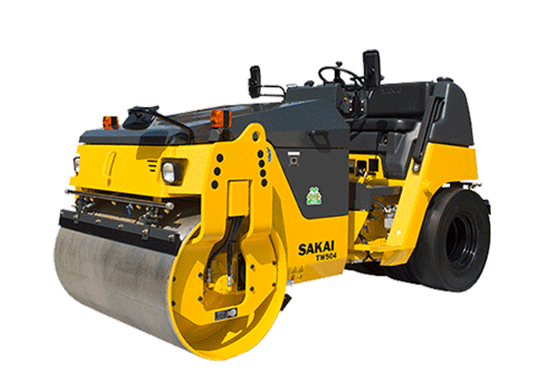

TW504
-

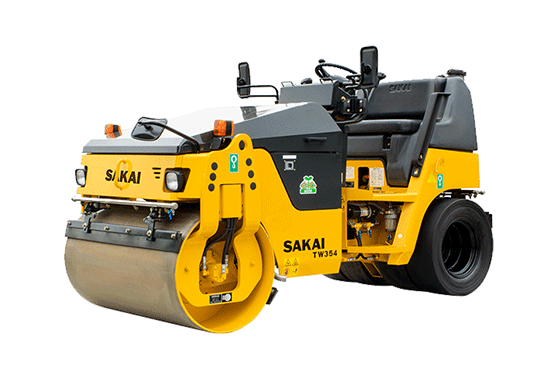

TW354
-
TW504
-
TW354
Feature
Operators Comfort
- Bench type seat enables easy access to see drum edge.
Eco Mode
- Sakai's new Eco compaction mode（ECM）, which reduces fuel consumption up to 20%.
Best Compaction Quality and Efficiency
- High-Low amplitude selector switch on the TW504 allows for use in wider applications.
- Excellent gradeability.
High Safety Standards
- Built in safety features prevent accidental starting, starts only when the Forward, Neutral & Reverse lever is in the neutral position and press down the parking brake switch.
- Emergency brake padal is standard.
- 1m x 1m visibility.
Easy Maintenance
- Sprinkler system with anti-clog package, i.e., a plastic water tank, triple-protection filtration, etc., and with perfect draining winterization.
- Oil bath lubrication for drum vibrator machanism.
Specification
*Specifications are subject change without notice.
*Engine meets EPA standards.
*Using low quality fuel may cause engine failure.
| MODEL | TW504 | TW354 | |
|---|---|---|---|
| WEIGHTS | |||
| Operating weight | kg (lb) | 3,440 (7,585) |
2,600 (5,730) |
| Load on front | kg (lb) | 1,980 (4,365) |
1,470 (3,240) |
| Load on rear | kg (lb) | 1,460 (3,220) |
1,130 (2,490) |
| DIMENSIONS | |||
| Overall length | mm (in) | 3,105 (122) |
2,675 (105) |
| Overall width | mm (in) | 1,390 (55) |
1,290 (51) |
| Overall height | mm (in) | 1,705 (67) |
1,575 (62) |
| Wheelbase | mm (in) | 2,300 (91) |
2,000 (79) |
| ENGINE | |||
| Make | KUBOTA | ||
| Model | D1703-M-DI-EF03 (Tier4) | ||
| Type | Diesel, water cooled, 4 cycle, 3 cylinder | ||
| VIBRATING SYSTEM | |||
| Transmission | Hydraulic | ||
| Vibrator | Eccentric shaft | ||
