TS160-2
-
TS160-2
-
TS160-2
Feature
- Wide tires with a wide overlap of 83mm realize flat surface with fine texture.
- Unique frame design permits a good view of ground to compact up to the very edge of curbs.
- High level of safety is assured by brake system with hydrostatic brake combined with highly reliable negative brake, gear type final drives and neutral start mechanism.
- Maintenance is easy thanks to monitor display, spray nozzles removable by one touch and closed gear drive.
Specification
*Specifications are subject change without notice.
MODEL | TS160-2 | |
---|---|---|
WEIGHTS | ||
Max. operating weight | kg (lb) | 2,980 (6,570) |
Operating weight | kg (lb) | 2,870 (6,325) |
Load on front | kg (lb) | 1,650 (3,640) |
Load on rear | kg (lb) | 1,220 (2,690) |

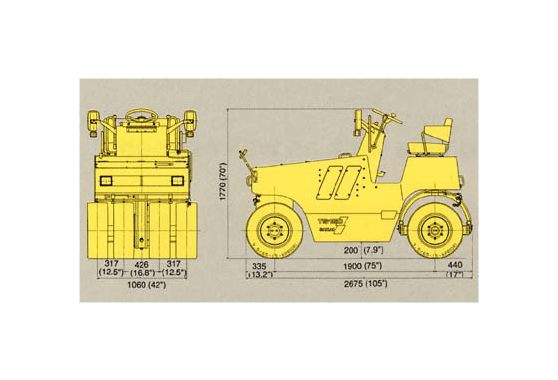

DIMENSIONS | ||
Overall length | mm (in) | 2,675 (105) |
Overall width | mm (in) | 1,300 (51) |
Overall height | mm (in) | 1,760 (69) |
Wheelbase | mm (in) | 1,900 (75) |
ENGINE | ||
Make | KUBOTA | |
Model | D1105-K3A | |
Type | Diesel, watar cooled, 4 cycle |
