SW888 / 988
-

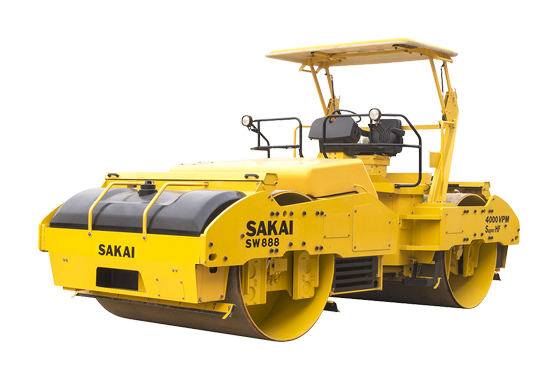

SW888
-

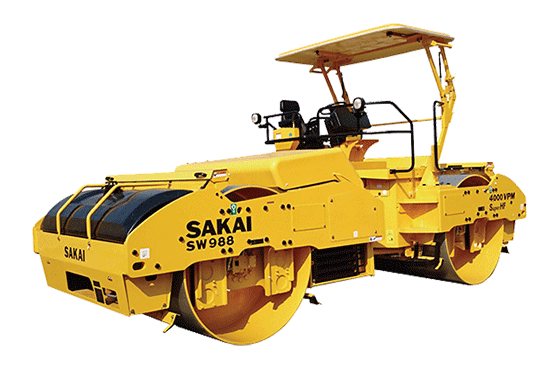

SW988
-
SW888
-
SW988
Feature
It can be used in general HMA, or SMA that is difficult to compact, and with a vibration frequency of 4,000 vpm, it enables rapid, large-scale construction.
Best Compaction Quality and Efficiency
- With a centrifugal force that can be set at five different levels, and a maximum vibration frequency of 4,000 vpm, it is capable of handling a variety of hot mix asphalt types（HMA） and rapid construction.
High Safety Standards and Operator's Comfort
- The original emergency brake pedal unique to SAKAI is capable of stopping the machine in an emergency, ensuring the safety of workers.
- The engine is mounted on the front frame（separated from operator station） for easier maintenance and operator's comfort.
Easy Maintenance
- Sprinkler system with anti-clog package, i.e., a plastic water tank, triple-protection filtration, etc., and with perfect draining winterization.
- The folding awning lowers the height of the machine allowing easy transportation.
Specification
*Specifications are subject change without notice.
| MODEL | SW888 | SW988 | |
|---|---|---|---|
| WEIGHTS | |||
| Operating weight | kg (lbs) | 12,460 (27,470) |
12,880 (28,395) |
| Load on front | kg (lbs) | 6,230 (13,735) |
6,430 (14,175) |
| Load on rear | kg (lbs) | 6,230 (13,735) |
6,450 (14,220) |
| DIMENSIONS | |||
| Overall length | mm (in) | 5,940 (234) |
|
| Overall width | mm (in) | 2,245 (88) |
2,325 (92) |
| Overall height unfold | mm (in) | 3,190 (126) |
|
| Wheelbase | mm (in) | 3,540 (139) |
|
| ENGINE | |||
| Make | DEUTZ | ||
| Model | BF4M2012C(EPA-Tier2) | ||
| Type | Diesel, water cooled, 4 cycle, 4 cylinder, with turbo charger | ||
| VIBRATING SYSTEM | |||
| Transmission type | Hydraulic | ||
| Vibrator | Double eccentric shaft | ||
