SW800 / 800N
-

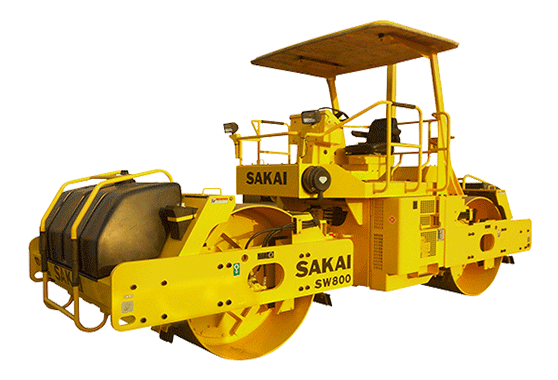

SW800
Feature
SW800: High Frequency（4000 vpm）, Standard Vibration
- The SW800 can be operated at 30-60% faster speed than those conventional vibratory roller of 2,500 or 3,000 vpm setting.
- Thus, the compaction work can be finished while asphalt mix is still hot and the SW800 makes smooth and dense mat.
SW800N: Oscillation
- The SW800N is a oscillatory（horizontal vibration） roller and is suitable for compaction of thin pavement（no crushing of aggregates）, bridge（not affecting structure）, or near residential area or IT factory（environmentally friendly operation）.
- SAKAI SW800N employs the gear drive type that greatly reduces down time and cost for maintenance.
Operator Comfort and Safety Features
- 180 degree swiveling operator console.
- SAKAI´s original shock absorbing system for better vibration isolation and longer parts life.
- Emergency pedal brake for additional safety.
Specification
*Specifications are subject change without notice.
| MODEL | SW800 | SW800N | |
|---|---|---|---|
| WEIGHTS | |||
| Operating weight | kg (lbs) | 9,880 (21,780) |
10,290 (22,685) |
| Load on front | kg (lbs) | 4,560 (10,055) |
4,770 (10,515) |
| Load on rear | kg (lbs) | 5,320 (11,730) |
5,520 (12,170) |
| DIMENSIONS | |||
| Overall length | mm (in) | 5,690 (224) |
|
| Overall width | mm (in) | 2,000 (79) |
|
| Overall height | mm (in) | 3,120 (123) |
3,105 (122) |
| Wheelbase | mm (in) | 3,300 (130) |
|
| ENGINE | |||
| Make | ISUZU "4BG1 TRB-06" | ||
| Type | Water-cooled, 4-cycle, 4-cylinder, overhead valve, direct injection type diesel engine with turbo charger | ||
