SV700 Series
-
SV700D
-
SV700T
-
SV700TF
-
SV700D
-

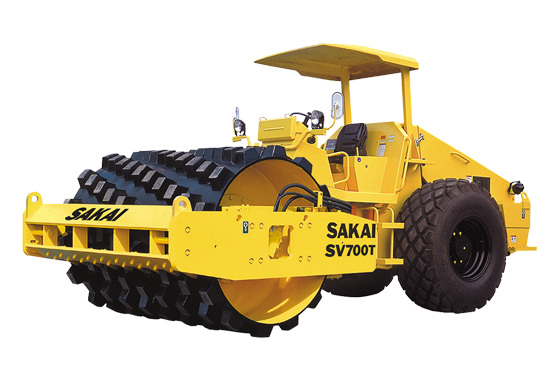

SV700T
-

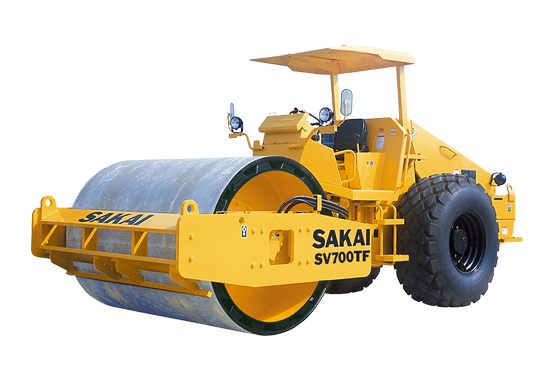

SV700TF
Feature
Excellent performance
- Well-balanced front and rear weight distribution contributes to excellent traction and slope climbing ability.
- The amplitude of the largest in the world class carries out greatest compaction.
- The hydrostatic transmission offers variable speed ranges and an ideal speed is easily selected for either working or transit.
Easy operation and riding comfort
- Despite powerful vibration, the chassis and operator are fully protected from vibration thanks to SAKAI's patented, unique vibration isolation system.
- Due to the rubber isolator mounted operator deck, the operator's riding comfort is excellent, and electrical instruments and gauges are free from vibration.
- The vibration ON-OFF switch located on the forward-reverse lever facilitates timely vibration control.
Excellent serviceability
- The engine and hydraulic components are enclosed in a compartment. The engine hood opens fully for easy access to engine and hydraulic components for service and maintenance.
- Large ball bearing and taper bearings are employed in the centerpin mechanism to prolong service life and lubrication intervals.
Specification
MODEL | SV700D | SV700T | SV700TF | |
---|---|---|---|---|
WEIGHTS | ||||
Operating weight | kg (lb) | 14,950 (32,960) |
20,145 (44,410) |
|
Load on front | kg (lb) | 8,500 (18,740) |
17,950 (39,570) |
|
Load on rear | kg (lb) | 6,450 (14,220) |
6,550 (14,440) |
|
DIMENSIONS | ||||
Overall length | mm (in) | 5,900 (232) |
5,905 (232) |
5,910 (233) |
Overall width | mm (in) | 2,290 (90) |
||
Overall height | mm (in) | 2,840 (112) |
2,860 (113) |
2,870 (113) |
Wheelbase | mm (in) | 3,000 (118) |
||
ENGINE | ||||
Model | ISUZU "BB-6BG1TRJ" | |||
Type | Diesel, water cooled, 4 cycle, 6 cylinder, with turbo charger | |||
VIBRATING SYSTEM | ||||
Transmission | Hydraulic | |||
Vibrator | Eccentric shaft type |
