SV201-1K Series
-

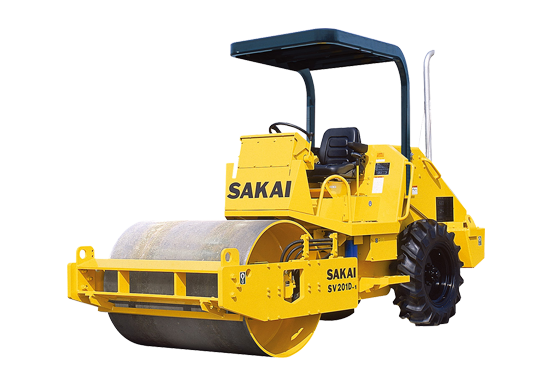

SV201D-1K
-
SV201T-1K
-

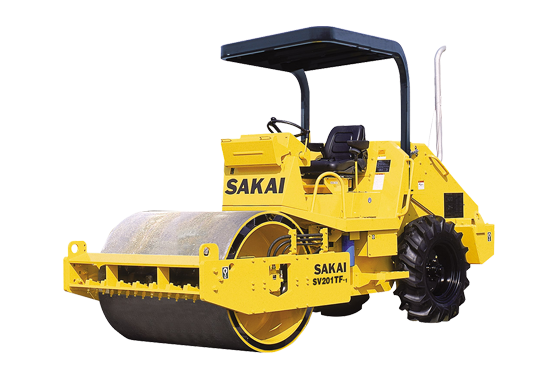

SV201TF-1K
-

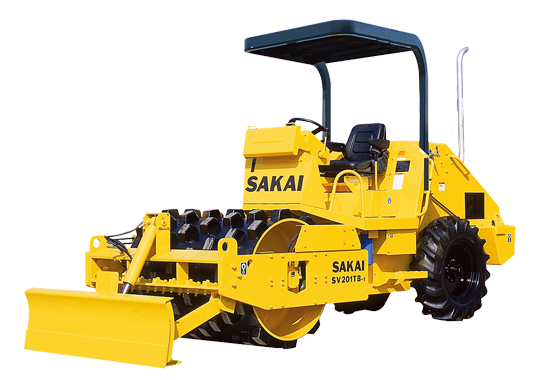

SV201TB-1K
-
SV201D-1K
-
SV201T-1K
-
SV201TF-1K
-
SV201TB-1K
Feature
Powerful Performance
- High nominal amplitude guarantees effective compaction.
- Smooth hydrostatic drive and responsive controls allows for maneuvering in tight areas and at various working speeds.
- Efficient diesel engine provides optimum power and fuel economy.
- Designed to meet high density requirements over wide range of soils and lift thicknesses.
Comfort and Safety
- Designed for maximum comfort and optimal visibility.
- Rubber isolated floating deck minimizes vibration.
- Built in safety features prevent accidental starting, starts only when the F-R lever is in neutral and parking breke is ON.
Simplified Maintenance
- Fully opening engine hood.
- Grouped service points with quick and easy access to service areas.
Specification
| MODEL | SV201D-1K | SV201T-1K | SV201TF-1K | SV201TB-1K | |
|---|---|---|---|---|---|
| WEIGHTS | |||||
| Operating weight | kg (lb) | 4,400 (9,700) |
4,520 (9,960) |
5,210 (11,485) |
4,750 (10,470) |
| Load on front | kg (lb) | 2,160 (4,760) |
2,260 (4,980) |
2,990 (6,590) |
2,590 (5,710) |
| Load on rear | kg (lb) | 2,240 (4,940) |
2,260 (4,980) |
2,220 (4,895) |
2,160 (4,760) |
| DIMENSIONS | |||||
| Overall length | mm (in) | 4,210 (166) |
4,770 (188) |
||
| Overall width | mm (in) | 1,570 (62) |
1,580 (62) |
||
| Overall height | mm (in) | 2,600 (102) |
|||
| Wheelbase | mm (in) | 2,330 (92) |
|||
| ENGINE | |||||
| Model | KUBOTA "V3307-DI-T" | ||||
| Type | Diesel, water cooled, 4 cycle, 4 cylinder, with turbo charger | ||||
| VIBRATING SYSTEM | |||||
| Transmission | Hydraulic | ||||
| Vibrator | Eccentric shaft type | ||||
