R2H Series
-

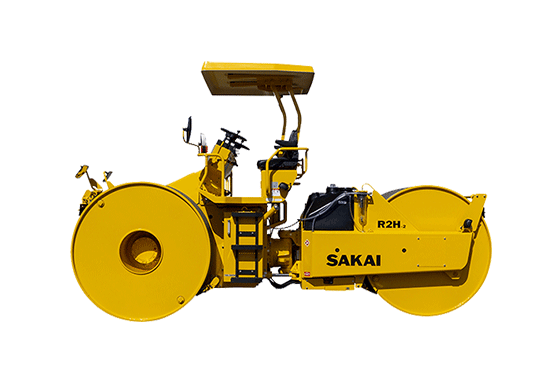

R2H-2
Feature
Best compaction quality and efficiency
- Equal static linear pressure across all drums provides uniform compaction.
- Articulated centre-point steering.
- The all-drum hydrostatic drive with the largest diameter drums leaves a smooth finish and minimizes pushing and shoving of hot mix asphalt（HMA） mat.
High safety standards
- Emergency brake pedal is standard.
Easy Maintenance
- Easy access to engine, hydraulics, devices, filters, etc. from ground.
- Direct access to spray nozzles from operators station.
- Rugged articulated cente-pin joint.
Specification
*Specifications are subject change without notice.
*Engine meets EPA standards for R2-2 series.
*Using low quality fuel may cause engine failure.
| MODEL | R2H-4 | R2H-2 | R2H-2K | |
|---|---|---|---|---|
| WEIGHTS | ||||
| Max. operating weight | kg (lb) | 14,080 (31,040) |
14,030 (30,930) |
|
| Operating weight | kg (lb) | 13,700 (30,205) |
13,650 (30,095) |
|
| Load on front | kg (lb) | 6,760 (14,905) |
6,670 (14,705) |
|
| Load on rear | kg (lb) | 6,940 (15,300) |
6,980 (15,390) |
|
| DIMENSIONS | ||||
| Overall length | mm (in) | 5,020 (198) |
||
| Overall width | mm (in) | 2,100 (83) |
||
| Overall height | mm (in) | 3,060 (120) |
||
| Wheelbase | mm (in) | 3,400 (134) |
||
| ENGINE | ||||
| Make | KUBOTA | |||
| Model | V3307-CR-T-EF05 | V3307-DI-T-KDN | V3307-DI-T-E2B-RRSH1 | |
| Type | Diesel, water cooled, 4 cycle, 4 cylinder with turbo charger | |||
