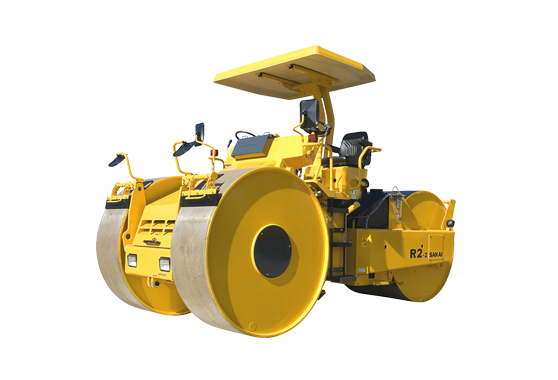

R2-2 / R2-2K

Feature

Best compaction quality and efficiency

  • Equal static linear pressure across all drums provides uniform compaction.
  • Articulated centre-point steering.

High safety standards

  • Emergency brake pedal is standard.

Easy Maintenance

  • Easy access to engine, hydraulics, devices, filters, etc. from ground.
  • Direct access to spray nozzles from operators station.
  • Rugged articulated cente-pin joint.

Specification

*Specifications are subject change without notice.
*Engine meets EPA standards for R2-2 series.
*Using low quality fuel may cause engine failure.

MODEL R2-2 R2-2K
WEIGHTS
Operating weight kg (lb) 9,980
(20,500)
Load on front kg (lb) 4,880
(10,760)
Load on rear kg (lb) 5,100
(11,245)
DIMENSIONS
Overall length mm (in) 5,020
(198)
Overall width mm (in) 2,100
(83)
Overall height mm (in) 3,060
(120)
Wheelbase mm (in) 3,400
(134)
ENGINE
Make KUBOTA
Model V3307-DI-T-KDN V3307-DI-T-E2B-RRSH1
Type Diesel, water cooled, 4 cycle, 4 cylinder with turbo charger
