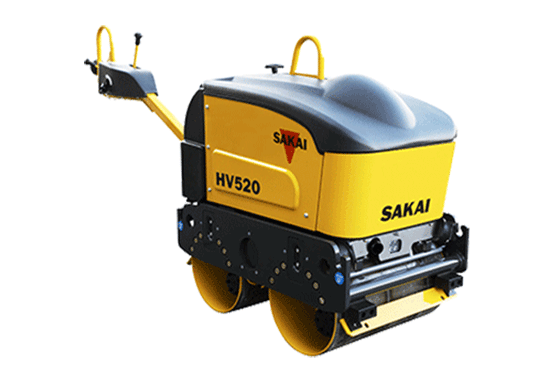

HV520 / 620

Feature

Improved Usability

  • Super silent(Sound power level : 94dB).
  • One-touch hood cover for easy maintenance.

High Efficiency

  • Small wall clearance and ample curb clearance allows the closest possible approach to any obstacles.
  • All comands for operating the machine are centralized and can be made from the operation handle.

Easy Maintenance

  • Easy water tank filling and draining is possible with large diameter water cap and chained drain plug at the bottom.

Specification

*Specifications are subject to change without notice.

MODEL HV520 HV620
WEIGHTS kg (lb) 620
(1,365)
640
(1,410)
DIMENSIONS
Overall length mm (in) 2,450
(96.5)
Overall width mm (in) 640
(25.2)
695
(27.4)
Overall height mm (in) 1,175
(46.3)
Compacting Width mm (in) 595
(23.4)
650
(25.6)
ENGINE
Make KUBOTA
Model E75-E3-NB3 (Non EPA)
Type Diesel, water cooled, 4 cycle, 1 cylinder
