TW502S-1/352S-1
-
TW502S-1
-

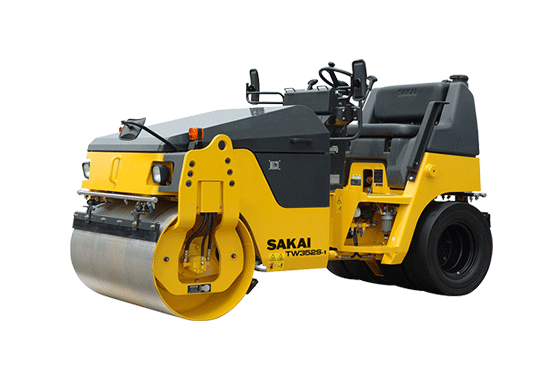

TW352S-1
-
-
TW502S-1
-
TW352S-1
-
Feature
Best compaction quality and efficiency
- Neutral start switch permits the engine to start only when the forward-reverse lever is in the neutral position
- Excellent gradability.
Higher Safety standards
- Built in safety features prevent accidental starting, satarts only when the Forward & Reverse lever is in the neutral position.
- Emergency brake pedal is standard.
- Sprinkler system with anti-clog package, i.e., a plastic water tank, triple-protection filtration, etc., and with perfect draining winterization.
- Oil bath lubrication for drum vibrator mechanism
Specification
*Specifications are subject change without notice.
*Engine meets EPA standards for SW502S-1.
*Using low quality fuel may cause engine failure.
| MODEL | TW502S-1 | TW352S-1 | |
|---|---|---|---|
| WEIGHTS | |||
| Operating weight | kg (lb) | 3,540 (7,800) |
2,640 (5,820) |
| Load on front | kg (lb) | 1,990 (4,385) |
1,480 (3,265) |
| Load on rear | kg (lb) | 1,550 (3,415) |
1,160 (2,555) |

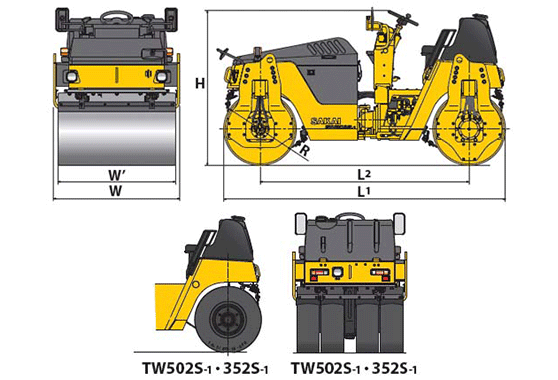

| DIMENSIONS | |||
| Overall length(L1) | mm (in) | 3,105 (122) |
2,675 (105) |
| Overall width(W) | mm (in) | 1,390 (55) |
1,290 (51) |
| Overall height(H) | mm (in) | 1,705 (67) |
1,575 (62) |
| Wheelbase(L2) | mm (in) | 2,300 (91) |
2,000 (79) |
| ENGINE | |||
| Make | KUBOTA | ||
| Model | D1503-T-EDM | D1503-EDM | |
| Type | Diesel, Water-cooled, 4-cycle, 3-cylinder | ||
