TW320-1/330-1
-

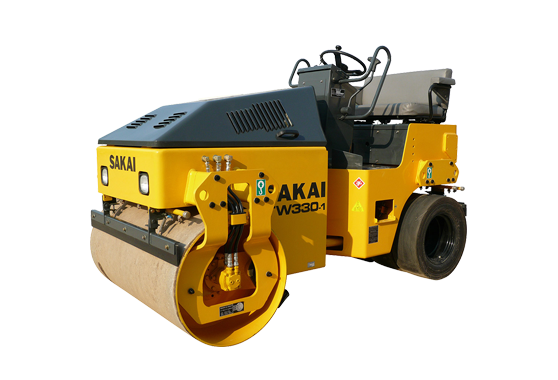

TW330-1
-
-
TW330-1
-
Feature
Powerful Performance
- Vibration frequency of 66.7Hz(4000vpm) allows highly efficient compaction with optimum impact spacing without sacrificing speed.
- Achieves clean surface finish with unique to-SAKAI rotational direction of vibration shaft(counter rotating).
- Applicable to a wide range of job applications due to its high curb clearance, side overhang, long wheel base and other specifications.
Comfort and Safety
- Emergency brake pedal is similar to an automobile brake system. Hydrostatic and multi-disc brake systems applied simultaneously for added safety.
- Excellent 360-degree visual angle for added safety.
Simplified Maintenance
- One-touch mounting water spray nozzles can be removed without any tools, thus making nozzle replacement a beeze.
Specification
*Specifications are subject change without notice.
*Engine meets EPA standards.
*Using low quality fuel may cause engine failure.
| MODEL | TW320-1 | TW330-1 | |
|---|---|---|---|
| WEIGHTS | |||
| Operating weight | kg (lb) | 2,710 (5,975) |
2,750 (6,060) |
| Load on front | kg (lb) | 1,410 (3,110) |
1,450 (3,195) |
| Load on rear | kg (lb) | 1,300 (2,865) |
|

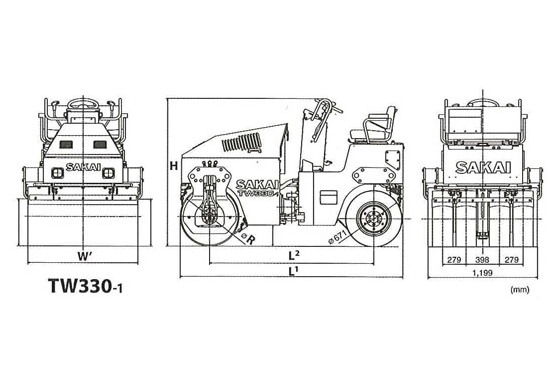

| DIMENSIONS | |||
| Overall length | mm (in) | 2,645 (104) |
|
| Overall width | mm (in) | 1,330 (52) |
1,430 (56) |
| Overall height | mm (in) | 1,750 (69) |
|
| Wheelbase | mm (in) | 1,950 (77) |
|
| ENGINE | |||
| Make | KUBOTA | ||
| Model | D1703-M-ET01 | ||
| Type | Diesel, water cooled, 4 cycle, 3 cylinder | ||
| VIBRATING SYSTEM | |||
| Transmission | Hydrostatic | ||
| Vibrator | Eccentric shaft type | ||
