SV630 Series
-
SV630D
-
SV630T
-
-
SV630D
-
SV630T
-
Feature
Proven Compactive Performancce
- Roller compactive force reaches target density in less number of roller passes.
- Provides higher centrifugal force and amplitude.
- Achieves uniform compaction throughout lift thickness.
Low Operating Costs
- Sakai's new Eco compaction mode(ECM), which reduces fuel consumption up to 20%, while maintaining compactive performance.
- Quality and durable components such as hydraulics, drum, center-pin hitch provide less maintenance.
Operator Comfort and Safety
- Includes Sakai's durable dual rubber isolation system between the drum and operator deck.
Specification
*Specifications are subject change without notice.
| MODEL | SV630D | SV630T | |
|---|---|---|---|
| WEIGHTS | |||
| Operating weight | kg (lb) | 12,860 (28,350) |
13,200 (29,100) |
| Load on front | kg (lb) | 7,090 (15,630) |
7,470 (16,470) |
| Load on rear | kg (lb) | 5,770 (12,720) |
5,730 (12,630) |

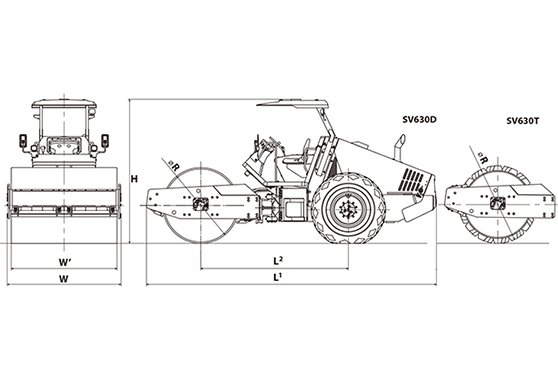

| DIMENSIONS | |||
| Overall length | mm (in) | 5,840 (230) |
|
| Overall width | mm (in) | 2,295 (90) |
|
| Overall height | mm (in) | 2,910 (115) |
2,925 (115) |
| Wheelbase | mm (in) | 2,970 (117) |
|
| ENGINE | |||
| Make | CUMMINS | ||
| Model | QSB4.5(EPA-Tier 3) | ||
| Type | Diesel, water cooled, 4 cycle, 4 cylinder, with turbo charger | ||
| VIBRATING SYSTEM | |||
| Transmission | Hydraulic | ||
| Vibrator | Eccentric shaft type | ||
