SV530 Series
-

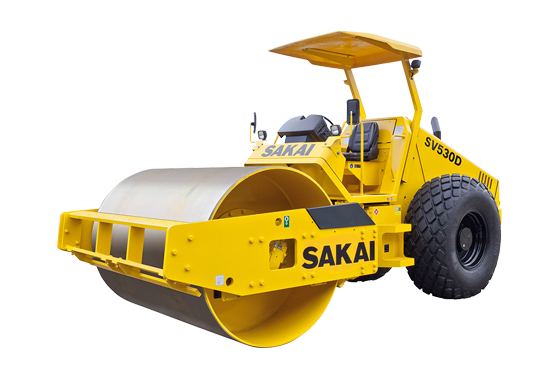

SV530D
-

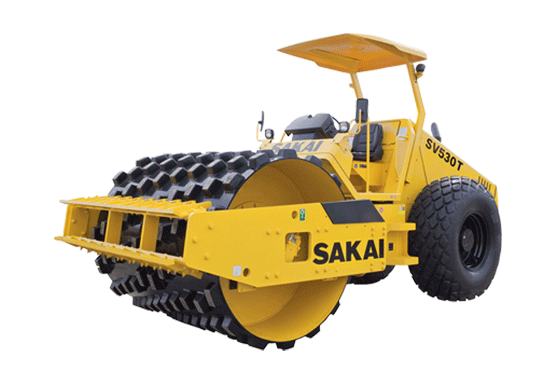

SV530T
-
SV530DF
-

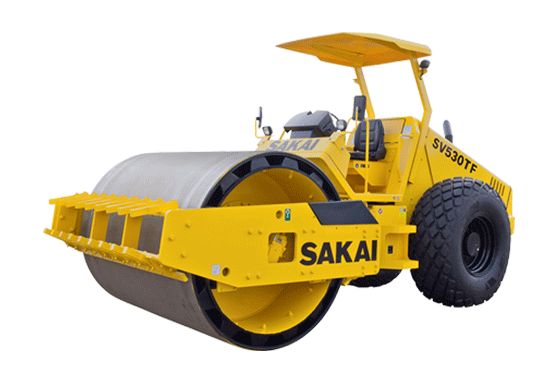

SV530TF
-
-
SV530D
-
SV530T
-
SV530DF
-
SV530TF
-
Feature
Proven Compactive Performancce
- Roller compactive force reaches target density in less number of roller passes.
- Provides higher centrifugal force and amplitude.
- Achieves uniform compaction throughout lift thickness.
Low Operating Costs
- Sakai's new Eco compaction mode(ECM), which reduces fuel consumption up to 20%, while maintaining compactive performance.
- Quality and durable components such as hydraulics, drum, center-pin hitch provide less maintenance.
Operator Comfort and Safety
- Includes Sakai's durable dual rubber isolation system between the drum and operator deck.
Specification
*Specifications are subject change without notice.
| MODEL | SV530D | SV530T | SV530DF | SV530TF | |
|---|---|---|---|---|---|
| WEIGHTS | |||||
| Operating weight | kg (lb) | 10,420 (22,970) |
10,760 (23,720) |
12,060 (26,585) |
13,030 (28,725) |
| Load on front | kg (lb) | 5,420 (11,950) |
5,800 (12,785) |
7,130 (15,720) |
8,070 (17,790) |
| Load on rear | kg (lb) | 5,000 (11,025) |
4,960 (10,935) |
4,930 (10,870) |
4,960 (10,935) |

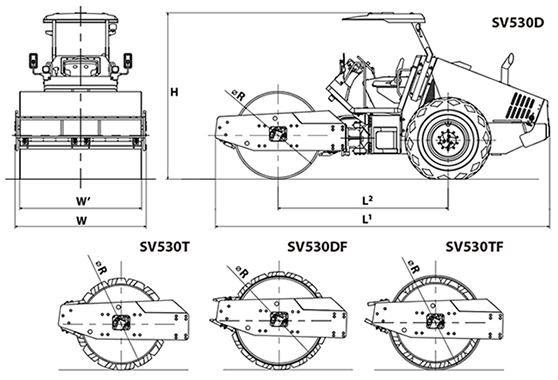

| DIMENSIONS | |||||
| Overall length | mm (in) | 5,840 (230) |
|||
| Overall width | mm (in) | 2,295 (90) |
|||
| Overall height | mm (in) | 2,910 (115) |
2,925 (115) |
2,945 (116) |
2,935 (116) |
| Wheelbase | mm (in) | 2,970 (117) |
|||
| ENGINE | |||||
| Make | CUMMINS | ||||
| Model | QSB4.5(EPA-Tier 3) | ||||
| Type | Diesel, water cooled, 4 cycle, 4 cylinder, with turbo charger | ||||
| VIBRATING SYSTEM | |||||
| Transmission | Hydraulic | ||||
| Vibrator | Eccentric shaft type | ||||
