SV520 Series
-
SV520D
-

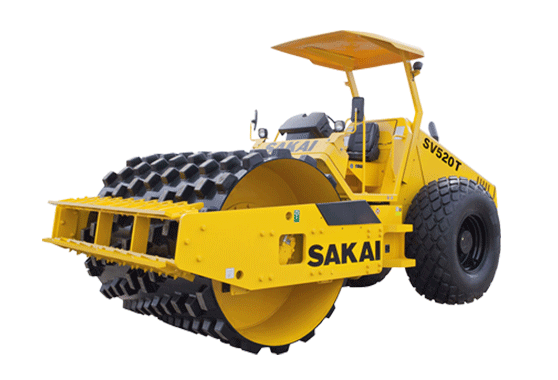

SV520T
-

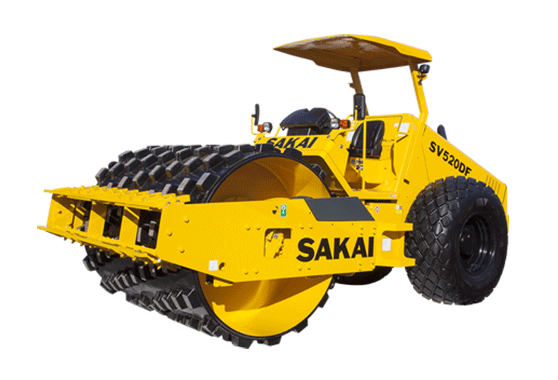

SV520DF
-
SV520TF
-
-
SV520D
-
SV520T
-
SV520DF
-
SV520TF
-
Feature
Proven Compactive Performancce
- Roller compactive force reaches target density in less number of roller passes.
- Provides higher centrifugal force and amplitude.
Low Operating Costs
- Sakai's new Eco compaction mode(ECM), which reduces fuel consumption up to 20%, while maintaining compactive performance.
Operator Comfort and Safety
- Includes Sakai's durable dual rubber isolation system between the drum and operator deck.
Specification
*Specifications are subject change without notice.
| MODEL | SV520D | SV520T | SV520DF | SV520TF | SV520DH | SV520TH | |
|---|---|---|---|---|---|---|---|
| WEIGHTS | |||||||
| Operating weight | kg (lbs) | 10,360 (22,840) |
10,700 (23,590) |
12,000 (26,460) |
12,970 (28,595) |
11,260 (24,825) |
11,610 (25,595) |
| Load on front | kg (lbs) | 5,440 (11,995) |
5,820 (12,835) |
7,140 (15,745) |
8,090 (17,840) |
6,350 (14,000) |
6,740 (14,860) |
| Load on rear | kg (lbs) | 4,920 (10,850) |
4,880 (10,760) |
4,860 (10,715) |
4,880 (10,760) |
4,910 (10,825) |
4,870 (10,735) |

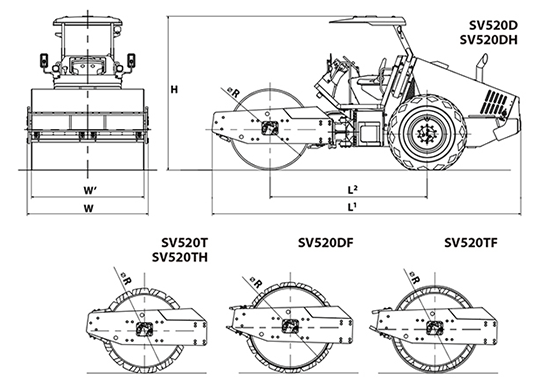

| DIMENSIONS | |||||||
| Overall length | mm (in) | 5,840 (230) |
|||||
| Overall width | mm (in) | 2,295 (90) |
|||||
| Overall height | mm (in) | 2,910 (115) |
2,925 (115) |
2,945 (116) |
2,935 (116) |
2,910 (115) |
2,925 (115) |
| Wheelbase | mm (in) | 2,970 (117) |
|||||
| ENGINE | |||||||
| Make | ISUZU | ||||||
| Model | 4BG1T(EPA-Tier2) | ||||||
| Type | Diesel, water cooled, 4 cycle, 4 cylinder, with turbo charger | ||||||
| VIBRATING SYSTEM | |||||||
| Transmission | Hydraulic | ||||||
| Vibrator | Eccentric shaft type | ||||||
