SV512 Series

Feature

Excellent performance

  • Well-balanced front and rear weight distribution contributes to excellent traction and slope climbing ability.
  • The amplitude of the largest in the world class carries out greatest compaction.

Easy operation and riding comfort

  • Despite powerful vibration, the chassis and operator are fully protected from vibration thanks to SAKAI's patented, unique vibration isolation system.
  • Due to the rubber isolator mounted operator deck, the operator's riding comfort is excellent, and electrical instruments and gauges are free from vibration.

Excellent serviceability

  • The engine and hydraulic components are enclosed in a compartment. The engine hood opens fully for easy access to engine and hydraulic components for service and maintenance.
  • Large ball bearing and taper bearings are employed in the centerpin mechanism to prolong service life and lubrication intervals.

Specification

*Specifications are subject change without notice.

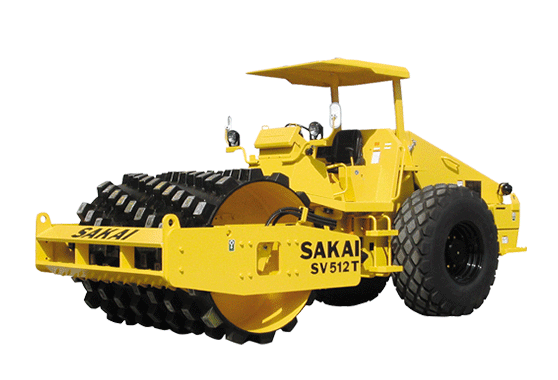

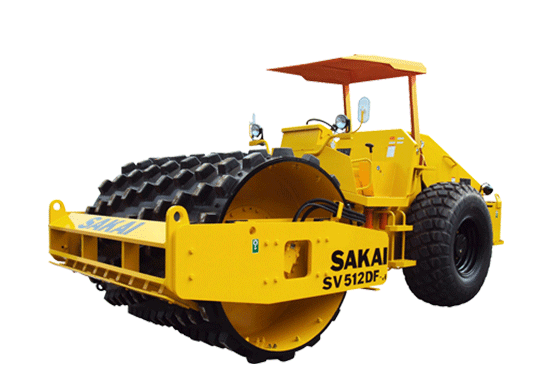

MODEL SV512 SV512D SV512T SV512TF SV512DF
WEIGHTS
Operating weight kg (lb) 10,320
(22,755)		 10,500
(23,150)		 10,850
(23,920)		 13,000
(28,660)		 12,050
(26,570)
Load on front kg (lb) 5,270
(11,620)		 5,450
(12,015)		 5,800
(12,785)		 7,950
(17,525)		 7,150
(15,765)
Load on rear kg (lb) 5,050
(11,135)		 4,900
(10,805)
DIMENSIONS
Overall length mm (in) 5,740
(226)		 5,760
(227)		 5,750
(226)		 5,785
(228)
Overall width mm (in) 2,300
(91)
Wheelbase mm (in) 2,970
(117)		 2,965
(117)
Rolling width mm (in) 2,130
(84)
ENGINE
Model Perkins "1104C-44TA" Diesel Engine with turbo charger
Type Water-cooled, 4-cycle, 4-cylinder in-line,vertical mounted overhead valve, direct injection type
VIBRATING SYSTEM
Transmission Hydrostatic transmission
Vibrator Eccentric shaft type
