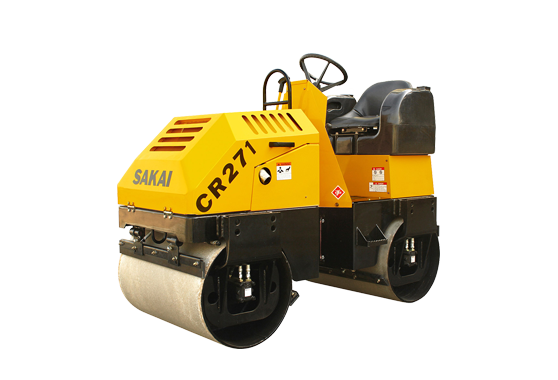

CR271
-
CR271
-
-
CR271
-
Feature
Powerful Performance
- Vibration frequency of 67Hz (4,000vpm) allows highly efficient compaction with optimum impact spacing without sacrificing speed.
- Cross mounted hydraulic drive motors on the front and rear drums keep the roller driving straight even at slower speeds.
Comfort and Safety
- Excellent 360-degree visual angle and drum edge visibility for added safety.
Simplified Maintenance
- Long life Sakai patented rubber isolators for drums.
- Flip open engine hood provides easy accessibility to engine and components for daily maintenance and service.
Specification
*Specifications are subject change without notice.
*Engine meets EPA standards.
*Using low quality fuel may cause engine failure.
| MODEL | CR271 | |
|---|---|---|
| WEIGHTS | ||
| Operating weight | kg (lbs) | 1,470 (3,245) |
| Load on front | kg (lbs) | 650 (1,435) |
| Load on rear | kg (lbs) | 820 (1,810) |

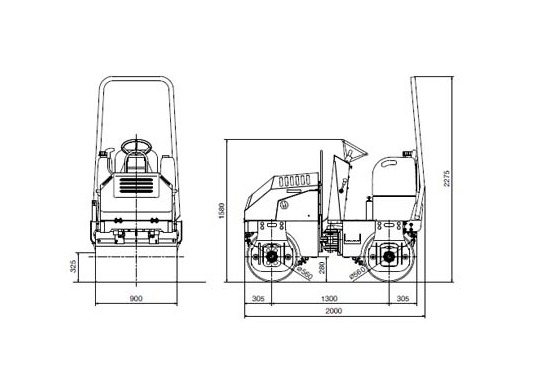

| DIMENSIONS | ||
| Overall length | mm (in) | 2,000 (79) |
| Overall width | mm (in) | 1,010 (40) |
| Overall height (with ROPS) | mm (in) | 2,400 (96) |
| Wheelbase | mm (in) | 1,300 (51) |
| ENGINE | ||
| Make | HONDA | |
| Model | GX630 (EPA-Phase 3) | |
| Type | Gasoline, Air-cooled, 4cycle, 2cylinder | |
| VIBRATING SYSTEM | ||
| Transmission | Hydraulic | |
| Vibrator | Eccentric shaft type | |
